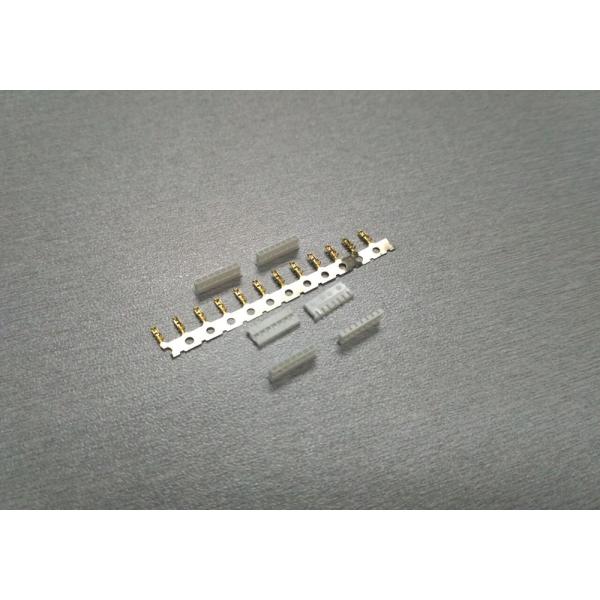

Gold-Plated Terminal board to board connector Pitch 1.0mm Housing
With PA66 Materials
1, The specification of the product including basic size
information, electrical and mechanical properties.
1. Basic information:
Color: White
Pitch: 1.20mm
Circuits: 2 to 8 positions
Row no.: Single
Insulation OD: 0.80mm
Packaging type: Bag
Wire range: AWG32# to 28#
Insulation material: LCP,UL94V-0; PA66,UL94V-0
Matched parts: A1201 series wafer
Application: Signal, wire to board
Terminal materials: Phosphor bronze
Finish terminal: Gold-flash type
Terminal package: 20K pcs/reel
Terminal processing method: E-stamping before tin-plated
2. Electrical characteristic:
Current rating: 1A AC, DC
Voltage rating: 125V AC, DC
Contact resistance: 20mΩ
Insulation resistance: 100mΩ
Withstanding voltage: 500V AC/minute
3. Mechanical characteristic:
Temperature range: -25 - 85°C
Terminal insertion force: 1.50kgf (max)
Terminal/housing retention force: 0.40kgf (min)
Pin retention force: 0.50kgf (min)
2, Related drawing and report
Drawing of product
Testing report
This document is the property of Xin Pei Enterprise and delivered on the express condition that it is not be
disclosed, reproduced or used, in whole or in part, for manufacture
or sale by anyone other than Xin Pei Enterprise. Without its prior consent, and that no right is granted to disclose
or to use any information in this document. |
1. Scope This specification covers the requirements for product performance
of 1.20mm pitch wire to board connectors series.
2. Construction,Dimensions,Material & Plating See the attached drawings
3. Ratings & Applicable Wires
| Item | Standard | | Rated Voltage (Max.) | 50V AC/DC | | | Rated Current (Max.) And Applicable Wires | AWG#28 | 1.5A AC/DC | | AWG#30 | 1.0A AC/DC | | Ambient Temperature Range | -25℃ ~ +85℃* |
*: Including terminal temperature rise
4. Electrical Performance
| Test Description | Procedure | Requirement | | 4-1 |
Contact Resistance
| Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based
upon JIS C5402 5.4) | 20mΩ (Max.) | | 4-2 | Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground.
(Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 100MΩ (Min.) | | 4-3 | Dielectric Withstanding Voltage | Mate connectors, apply 500V AC (rms) for 1 minute between adjacent
terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method
301) | No Breakdown. | | 4-4 | Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry
circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
5. Mechanical Performance
| Test Description | Procedure | Requirement | | 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm /
minute. | Refer to paragraph 7 | | 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at
the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#28 | 0.9kgf (Min) | | AWG#30 | 0.7kgf (Min) | | 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50kgf (Max.) | | 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on
the terminal assembled in the housing. | 0.40kgf (Min.) | | 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 0.50kgf (Min.) | | 5-6 | Durability | When mated up to 10 cycles repeatedly by the rate of 10 cycle per
minute. | Contact Resistance:40mΩ (Max.) | | 5-7 | Vibration | Amplitude: 1.52mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each
X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) | Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) | | 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS
C0041/MIL-STD-202 Method 213B Cond. A) |
|
6. Environmental Performance And Others
| Test Description | Procedure | Requirement | | 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) | | 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond.
A) | Appearance No Damage. Contact Resistance 40mΩ (Max.) | | 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | | 6-4 | Humidity | Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) | Appearance No Damage. Contact Resistance 40mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 | | 6-5 | Temperature Cycling | 10 cycles of: a) -25℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) | Appearance No Damage. Contact Resistance 40mΩ (Max.) | | 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt
spray from the 5±1% solution at 35±2℃. (Based upon JIS
C0023/MIL-STD-202 Method 101C Cond. B) | | 6-7 | SO2 Gas | 24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. | | 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia
solution. |
| 6-9 | Solderability | Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃ | Solder Wetting 95% of immersed area must show no voids, pin holes | | 6-10 | Resistance to Soldering Heat | When reflowing Refer to paragraph 8 Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ | Appearance No Damage. |
7. Actuator Insertion/Withdrawal Force [Unit : kgf] | Circuits | Insertion (Max.) | Withdrawal (Min.) | | 1st | 3rd | 10th | | 02 | 1.84 | 0.41 | 0.15 | 0.12 | | 03 | 2.14 | | 04 | 2.45 | | 05 | 2.76 | | 06 | 3.06 |
|
