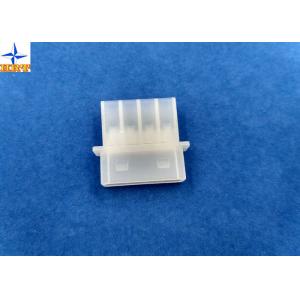

Female Brass 5.08mm pitch connector , Crimp Style Connector Single
Row Housing
1, Detailed specification table of product
| Detailed information |
|
Basic information | Type | Housing |
| Gender | Female |
| Circuits | 4 positions |
| Insulation O.D. | 3.10mm(max) or 2.5mm(max) |
| Mating lock | Without |
| Finish terminal | Tin-plated |
| Suitable terminal | C5080T-M-A |
| Suitable housing | C5080HF |
|
| Electrical properties | Current Rating | 10A AC, DC |
| Voltage Rating | 250V AC, DC |
| Contact Resistance | 10mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Withstanding Voltage | 1500V AC/minute |
|
| Mechanical properties | Temperature range | -25℃ to 85 ℃ |
| Terminal Insertion Force | 2.0kgf (Max.) |
| Terminal/Housing Retention Force | 3.00kgf (Min.) |
| Pin Retention Force | 2.00kgf (Min.) |
|
| Other information please kindly check the following picture. |
2, Introduction for this series products
Please kindly notice that the C5080 series product, you can buy it
as a set, then we will offer you reasonable price.
| C5080 series product |
| Terminal | C5080F-T and C5080M-T-A |
|
Connector | Male housing | C5080HF-04P |
| Female housing | C5080HM-04P |
|
| Wafer | Vertical mouting type | C5080WV-04P |
3, Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for
further information. It's sure that it will be a
good reference for you to know this series parts clearly.
Dimension drawing
Environmental Performance And Others
| Test Description | Procedure | Requirement |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond.
A) | Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) |
| 6-4 | Humidity | Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) | Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling | 5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) | Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt
spray from the 5±1% solution at 35±2℃. (Based upon JIS
C0023/MIL-STD-202 Method 101D Cond. B) |
| 6-7 | SO2 Gas | 24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia
solution. |
4,FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging
requirment, all you have to do is let us know your idea or demands.
Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and
accurate size as originals.
Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to
increase order gradually.
Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
