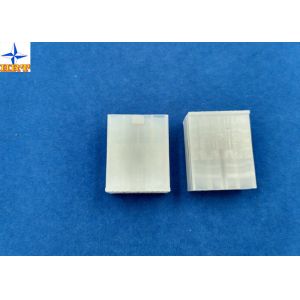

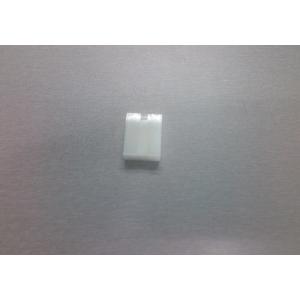

1, Detailed specification of product:


1. Basic information:

• Color: White
• Housing Material: Nylon66
• Flammability: 94V-0/2
• Pitch:4.20 mm
• Circuits: 2pins to 24pins
• Insulation O.D.: 3.10mm
• Terminal materials: Phosphor bronze/Brass
• Finish terminal: Tin-plated type
• Matched terminal: C4255M series terminal

2. Electrical characteristic:

• Current Rating: 9A AC DC
• Voltage Rating: 600V AC, DC
• Contact Resistance: 10mΩ Max
• Insulation Resistance: 1000mΩ
• Withstanding Voltage: 1500V AC/minute

3. Mechanical characteristic:

• ​​Temperature Range:-25°C ~+85°C
• Terminal Insertion Force: 1.50kgf (Max.)
• Terminal/Housing Retention Force: 3.00kgf (Min.)
• Pin Retention Force: 3.00kgf (Min.)
• Latch Yield Strength:7.0kgf (Min.)
• Panel Mount Retention Force: 16.0kgf (Min.)

Other detailed data please check the pictures as below.
